PWM-600
|
|
Commercial Water Purification
For whole
house supply, water stores, boiler water and process water.
|
| Features |
| |
TFC reverse
osmosis membranes with stainless steel housings.
Positive displacement pump with motor
Feed water solenoid valve with manual override
Product water flow meter
Brine control with manual needle valve
Pressure gauges for supply water, pump inlet and outlet
Automatic flush system with brine by-pass solenoid valve
Low pressure shut down switch
Recycle system with fixed orifice
|
| |
|
| Built on a sturdy free-standing powder
coated steel frame, these use commercial size RO membranes which
typically removes 95% of the TDS. These systems are designed
to handle up to 2500 ppm TDS, with an estimated 3-year life
for the RO membrane. The PWM-600 and 1200 models can be supplied
with sediment and carbon prefilters adequate for municipal water.
Pre-treatment is required by the user for larger flow rates
and problem water. |
|
AVAILABLE
OPTIONS
| System
Rating*
Gal/Day |
Pressure
PSI
Oper./Max |
Height
Inches |
Width
Inches |
Depth
Inches |
Inlet/Ooutlet
Connection Size |
Weight
Pounds |
Motor
HP
115/60 |
RO
Membrane |
Order
Number |
| 600 |
125/175 |
38 |
24 |
14 |
3/4" NPT |
3/4" tube |
66 |
1/2 |
2521 x 2 |
PWM-600 |
| 1200 |
125/175 |
38 |
24 |
14 |
3/4" NPT |
3/4" tube |
86 |
1/2 |
4021 x 1 |
PWM-1200 |
| 1800 |
125/175 |
51 |
25 |
24 |
3/4" NPT |
3/4" NPT |
120 |
1 |
4040 x 1 |
PWM-1800 |
*System rating based on engineering constraints for
proper flow at membrane surface

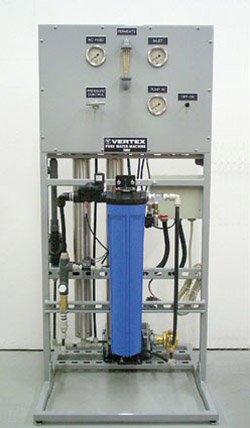

Typical configuration shown. Water Analysis and conditions
must be provided to properly size the system.
|
|
|
