VariSoft™ Water Softerner

Uses Less Salt & Wastes Less Water

Use the VariSoft line of softeners to eliminate limescale buildup on pipes, fixtures and water heaters. Reduce detergent use up to 70% and increase water heater efficiency by as much as 29% for gas or 22% for electric. The VariSoft includes a high efficiency injector that saves even more water. Get cleaner, softer clothes while reducing plumber and appliance service costs. Choose one of 3 sizes up to 60,000 grain removal.

• Metered valve with simple 3 button electronic interface
• Noryl bypass valve with integrated meter
• Single piston design reduces moving parts, increases efficiency & longevity
• Pressure tested over 100,000 cycles from 0-150 psi to ensure reliability
for the US market. Valve tested to 10,000 regeneration cycles
• New injector design for more efficient brine draw and water savings
• Downflow design with standard 33% freeboard
• Specially coated meter sensor prevents iron fouling
• Brine safety valve & Salt grid included in every brine tank
• 8% crosslinked resin standard, 10% available
• Low voltage (24v) system eliminates danger of high-voltage shock
• Metal bypass wrench included
• 5 year valve warranty, limited lifetime tank warranty

(For complete warranty details see product warranty statement)

How a Water Softener works



Shown with optional Stainless Steel jackets

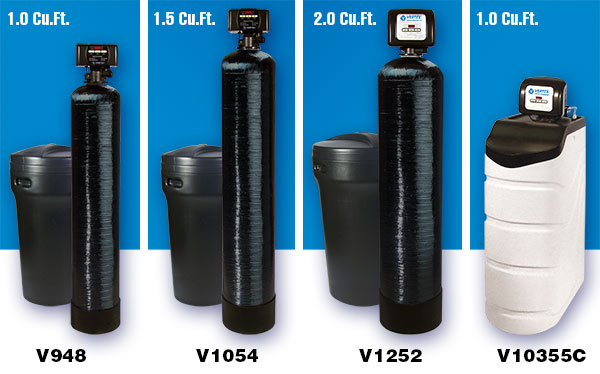

Model NumberV948V1054V1252
Applicationssmall homes & condosaverage homeluxury homes
Nominal Resin Capacity* 1.0 Cu. Ft.1.5 cu. Ft.2.0 Cu. Ft.
Hardness Removal max grains 30,00045,00060,000
Nominal System Flow
@50 psi, 15 psig drop
19.3 gpm19.3 gpm20.1 gpm
Softener Tank Size 9"dia x 48" high10"dia x 54"high 12"dia x 52"high
Brine Tank Size 15.5" dia. x 31" high 15.5" dia. x 31" high 18"dia. x 33"high
Type Control Valve F20 F20N25
Pipe Sizes inlet, 3/4" mpt
drain, 1/2" fpt
brine, 3/8" tube
inlet, 3/4" mpt
drain, 1/2" fpt
brine, 3/8" tube
inlet, 1" mpt
drain, 1/2" fpt
brine, 3/8" tube
Bypass with Meter and
Blending Valve
includedincludedincluded
Power Supply 24 VAC24 VAC24 VAC
Weight, Pounds 85115160
Overall Dimensions H-56", W-25", D-15"
H-62", W-26", D-16"
H-62", W-25", D-17"
Conditions of Use: Water must be microbiologically safe; System pressure, 20 min to 100 max psi; Temperature, 40 to 100° F
For Sales, Service or Parts, contact

vertex-logo-blue

800-627-2146

Vertex VariSoft™ Water Softerners use less salt and waste less water than conventional ion-exchange softeners. The On-Demand meter control with blending valve allows for less regeneration cycles, which reduces water and salt usage.
